Mattermost Calls Deployment Guide

Available on Entry, Professional, Enterprise, and Enterprise Advanced plans

This guide walks System Administrators step-by-step through deploying Mattermost Calls, from preparation and network readiness through to pilot testing and production rollout. You’ll find clear decision points, verification checks, and troubleshooting tips to help you confirm each phase of the deployment is working before you move on.

No prior experience with Mattermost Calls is required - this guide assumes you’re starting fresh and will introduce essential concepts and best practices.

Calls Overview

Mattermost Calls offers self-hosted audio calling and screen sharing, enabling sovereign real-time collaboration fully contained within your infrastructure. This means no call media or metadata traverses third-party systems.

Calls is uniquely suited for mission-critical operations across defense, intelligence, security and critical infrastructure - where data sovereignty, control, and compliance are non-negotiable. It is designed to function in isolated networks without internet access, supporting deployments that demand full airgap compliance.

Functionality includes:

• 1:1 and Group Calling: Initiate real-time voice communication between two or more participants.

• Screen Sharing: Share your screen during calls to collaborate visually on tasks, review documents, or troubleshoot live issues.

• Call Recording and Transcription: Record voice sessions for asynchronous review. (Enterprise, Enterprise Advanced)

• Live Captioning: Generate real-time subtitles for accessibility. (Enterprise, Enterprise Advanced)

Deployment Overview

This guide is organized into sequential deployment phases with numbered steps. Each phase begins with prerequisites and ends with verification checks. Before you begin any phase, make sure the listed prerequisites are met, then move to the next phase only after the verification checks are passing. This structure helps you catch and fix issues early, when they are easiest to isolate.

Deployment Phases:

1. Preparation and Networking

   Choose your deployment architecture, make networking decisions, provision required servers, and confirm the required network ports and paths are open before deployment.

2. Install and Configure Calls

   Complete the installation and configuration for the deployment architecture you selected in Phase 1.

   • Path A: Configure Integrated Calls

     Use the built-in Calls service on the Mattermost server for simpler deployment at small scale.

   • Path B: Install and Configure RTCD (Optional)

     RTCD (Real-Time Communication Daemon) is a service built to offload media processing tasks from the Mattermost server.

3. Install and Configure Recording (Optional)

   Calls Offloader is a service required to deliver recording, transcription and live captions.

4. Pilot Rollout

   Expand testing to a small group of pilot users to watch for client, network, and environment-specific issues under real usage.

5. Production Rollout

   Rollout to all users in controlled waves with appropriate communication and monitoring, and be ready to pause or roll back if needed.

Deployment Prerequisites

Use this checklist to confirm you have the infrastructure, skills, and access required before you begin deploying Calls. Completing these prerequisites now helps prevent delays caused by missing dependencies later in the deployment process.

Deployment Infrastructure Requirements

• You have a running Mattermost server on v10.0+.

  See System Information to check your Mattermost edition and version.

• Your Mattermost server is configured to use HTTPS.

  See Configure TLS if you need to set up HTTPS.

• You know how many active users you have in your current Mattermost deployment

  See Site Statistics to access usage metrics.

• You can provision at least one dedicated Linux server or VM if you plan to use the RTCD service.

  See Infrastructure Decisions (Step 1.2) if you’re unsure if you need RTCD.

• You can provision a dedicated Linux server or VM for the calls-offloader service if you need recording, transcription, or live captions.

• You are prepared to deploy a TURN server if your users cannot reliably reach the media service on UDP or TCP 8443.

  See Networking Decisions (Step 1.3) if you’re unsure if you need a TURN server.

• You have the appropriate Mattermost edition and license for the features you need:

  • Mattermost Entry or Team Edition: 1-1 calling and screen sharing (Up to 40 minutes)

  • Mattermost Professional: Group calling and screen sharing (No time limit)

  • Mattermost Enterprise or Enterprise Advanced: Required for:

    • RTCD service for scale (50+ users) and production reliability.

    • Recording, transcription, or live captions.

Skills and Access Requirements

• You are comfortable with basic Linux administration, or you have someone available who is. You will need to connect to servers over SSH, edit configuration files, manage systemd services, inspect logs, and run shell commands.

• You have System Admin access to your Mattermost server.

  See Mattermost roles to learn about roles and permissions.

Networking Requirements

• You know how end users will connect to Calls (From private networks, VPN, or from the public internet)

  This impacts your networking decisions (Step 1.3)

• You can open the required inbound and outbound firewall rules, or you can engage the network or security team that manages them.

Validation Resources

• You have two test accounts available for smoke testing during Calls installation and configuration.

• You have a small pilot group (5-10 users) available for validation across the client types and networks you care about.

Contacting Support

• You know how to open a request with Mattermost support if you encounter issues.

  Please include the exact step number (e.g. 2A.2.1) that failed, along with your Mattermost support packet and Calls logs.

Note

If you need expert help deploying Calls, contact your Account Manager or talk to a Mattermost expert to learn about professional service offerings.

---

Phase 1: Preparation and Networking

1.1 Prerequisites

Before you start, confirm the following:

• You know how many active users you have in your current Mattermost deployment.

• You know whether recording, transcription, or live captions are required for your deployment.

• You can provision additional servers if your chosen architecture requires RTCD or Recording services.

• You can open inbound and outbound network ports on the servers involved in your deployment.

  If a network or security team manages your firewalls, you’ll need to involve them before continuing.

1.2 Infrastructure Decisions

Here you will make two important infrastructure decisions: First you’ll choose your media processing architecture, then decide whether you need recording. Reference topology for each architecture is provided.

1.2.1 Media Service: RTCD or Integrated

Integrated

This is the simplest deployment model, since you do not need to provision a separate service to handle media processing. In Integrated mode, the Calls plugin runs its built-in media service directly on the Mattermost server.

RTCD

RTCD is a dedicated real-time communications service for Mattermost Calls that processes call media outside the main Mattermost server. In most production deployments, RTCD is the recommended deployment model because it improves performance, scalability, and stability by isolating call traffic and reducing load on the Mattermost server.

To determine if you’ll need RTCD, start by answering the following questions about your deployment:

• Are you deploying Calls on Kubernetes?

  • Yes: You’ll need to deploy RTCD as it’s the only supported way to run Calls. See the Kubernetes Calls deployment guide for details.

  • No: Continue to the next question.

• What is the Total User count of your existing Mattermost deployment? (Check Site Statistics)

  • Up to 50: You can use the Integrated deployment model.

  • More than 50: You’ll need to deploy RTCD to avoid impacting messaging performance of the Mattermost server.

Use the tabs below to view the reference architecture for each deployment model:

Integrated

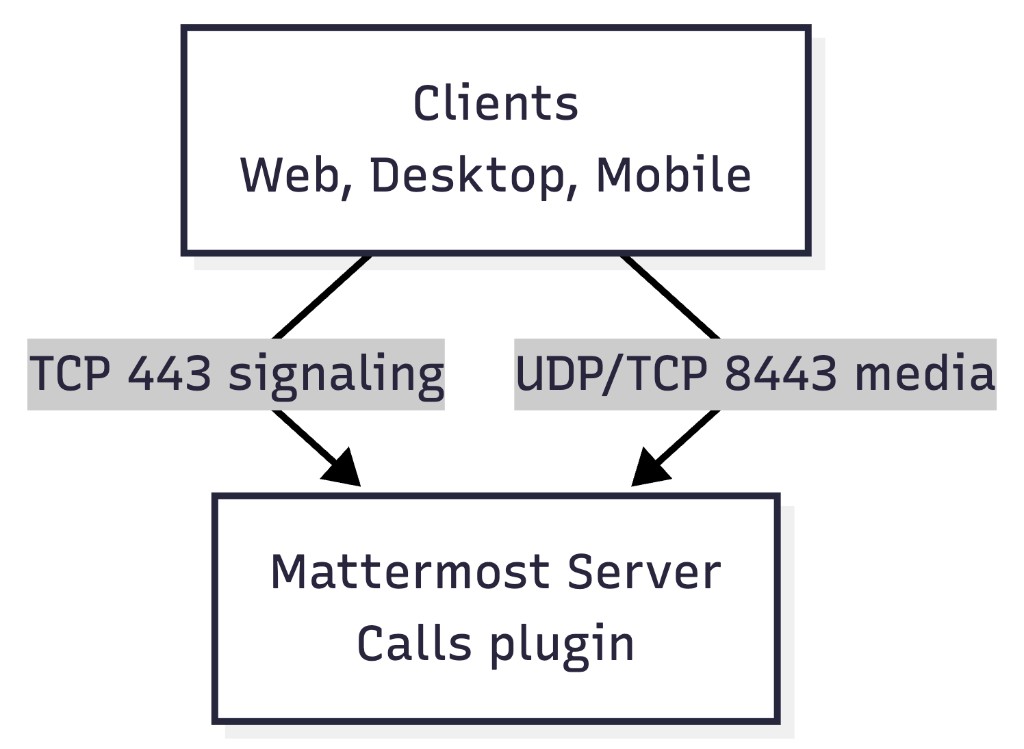

An Integrated deployment does not require any additional infrastructure:

When to use it

• You are evaluating Calls for the first time.

• You expect fewer than 50 people to use Calls.

• You want the simplest possible deployment.

Components

• Mattermost server: Calls plugin is pre-installed, and no additional infrastructure is needed.

License

• Mattermost Entry: 1:1 Calls + Screen Sharing (Up to 40 minutes)

• Mattermost Professional, Enterprise, or Enterprise Advanced: Group Calls + Screen Sharing (No time limit)

RTCD

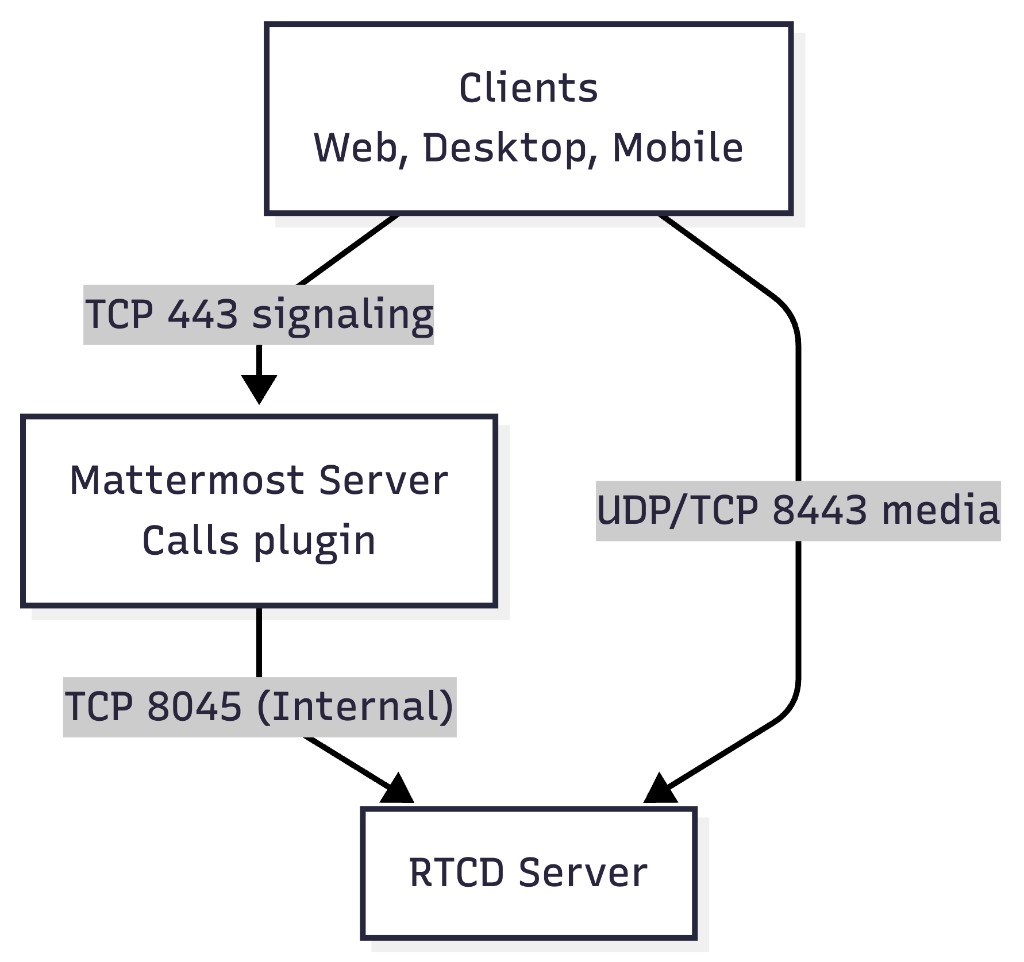

An RTCD Server is added as a dedicated media service that processes all call audio and screen sharing media. The Mattermost server is still responsible for signaling (setting up, managing, and ending calls) and channel state (who is joining or leaving, who has muted, and overall call status), but the call media itself flows directly between clients and the RTCD server, completely bypassing the Mattermost server.

When to use it

Use RTCD if you need optimized performance, scalability, and the best possible user experience for Mattermost Calls. Specifically:

• You want to keep call media traffic off your main Mattermost server to improve overall server performance and reduce CPU usage spikes.

• You need your deployment to easily scale as call volume increases; additional RTCD servers can be added for load balancing.

• You want the lowest possible media latency and highest reliability for Calls.

• You are deploying Mattermost on Kubernetes, where RTCD is required.

Components

• Mattermost server: Calls plugin is pre-installed.

• RTCD Server: Dedicated media service. Clients connect to it directly for media traffic.

License

• Mattermost Enterprise or Enterprise Advanced

1.2.2 Recording

The Recording service (calls-offloader) can be added to an Integrated or RTCD Calls deployment to enable recording, transcription, and live captions.

Use the tabs below to view the reference architecture for each deployment model when the recording service is added:

Integrated + Recording

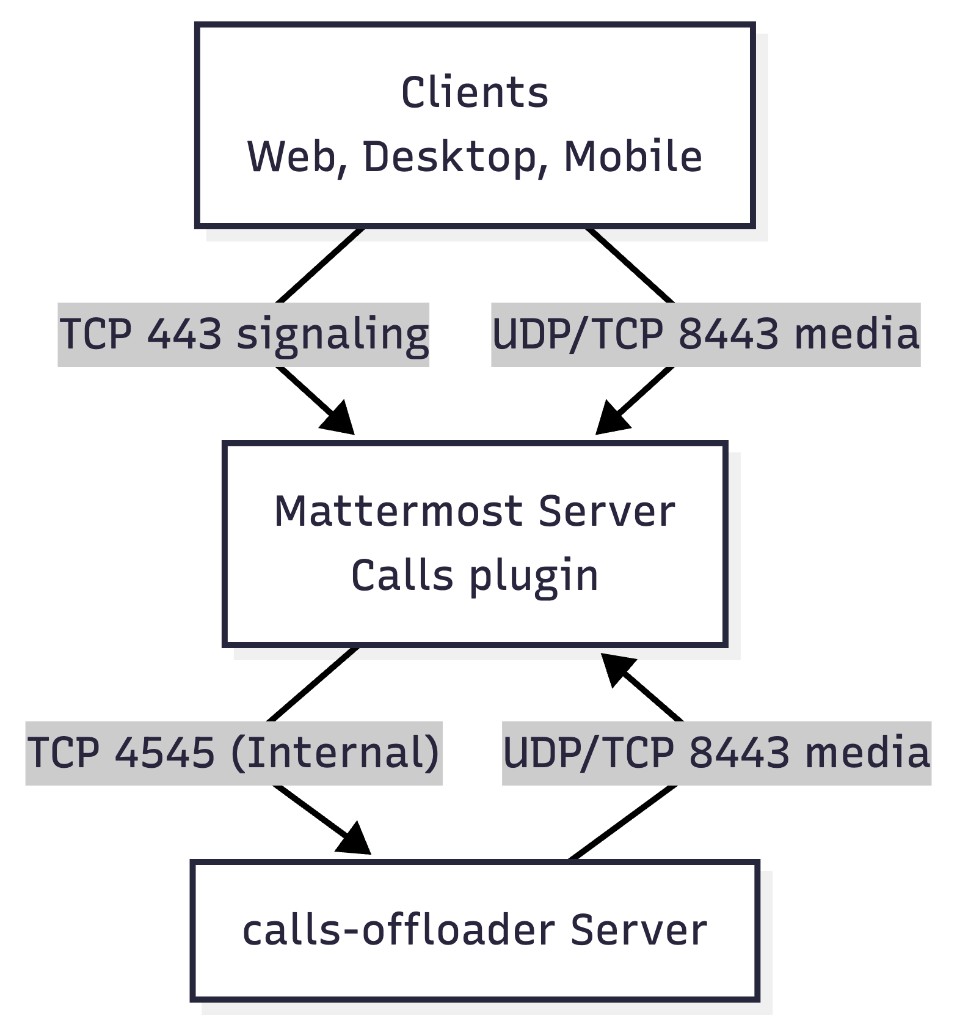

Reference architecture when using the Recording service with Integrated Calls:

Components

• Mattermost server: Calls plugin is pre-installed.

• Calls Offloader: Job service that manages recording, transcription and live captions.

License

• Mattermost Enterprise or Enterprise Advanced

RTCD + Recording

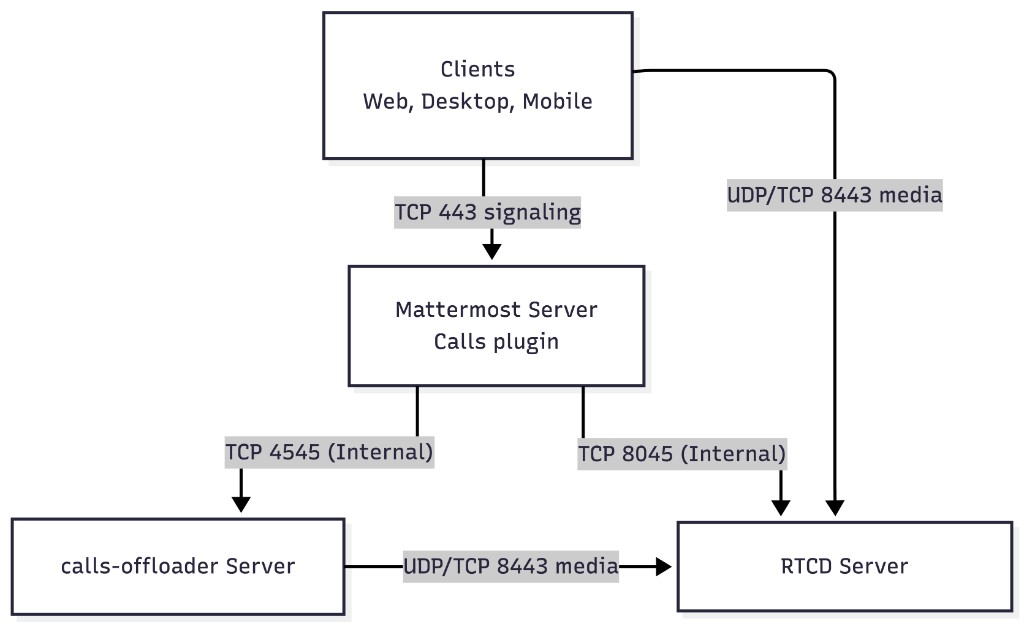

Reference architecture when using the Recording service with RTCD:

Components

• Mattermost server: Calls plugin is pre-installed.

• RTCD Server: Dedicated media service. Clients connect to it directly for media traffic.

• Calls Offloader: Job service that manages recording, transcription and live captions.

License

• Mattermost Enterprise or Enterprise Advanced

Note

For most production deployments that need recording, RTCD plus calls-offloader is the recommended combination because it keeps call media off the Mattermost server and scales more predictably.

1.3 Networking Decisions

1.3.1 STUN for Public IP Discovery

STUN is a protocol that helps the media server discover its public IP address automatically so remote clients can connect to Calls.

Mattermost provides a default STUN server (stun.global.calls.mattermost.com). No call media or signaling traffic is sent through this service; it is used only for STUN lookups. Use this decision tree to determine if you need to allow outbound access from your media server to the Mattermost global STUN service for public IP discovery.

Note

Your media server is the Mattermost server in the case of an Integrated Calls deployment, or it’s the RTCD server in the case of an RTCD Calls deployment.

STUN Decision Tree

1. Are all users and your media server in the same private network, VPN, or air-gapped environment, with no outside clients?

   • Yes: You do not need STUN for public IP discovery. You will use the private address of your media server for configuration in Phase 2.

   • No: Continue to the next question.

2. Does your media server have a stable public IP address or DNS name that clients on the public internet can reach?

   • Yes: You do not need STUN for public IP discovery. You will use the stable public address of your media server for configuration in Phase 2.

   • No: You will need STUN. You must open outbound UDP 3478 from your media server to stun.global.calls.mattermost.com.

If your deployment requires STUN for public IP discovery, note that now so you can include it when opening ports in Step 1.5.

1.3.2 TURN Server

TURN is a relay service used only when clients cannot reach the Calls media service directly. If STUN helps clients discover where to connect, TURN acts as a backup route when direct connectivity is not possible.

Provisioning a TURN server is necessary if both of these conditions are true:

• Clients connect from networks that cannot reliably use UDP on port 8443 for media traffic (preferred).

• Clients connect from networks that cannot reliably use TCP on port 8443 (fallback).

TURN is typically a last resort as it adds latency and infrastructure complexity. Only plan to deploy TURN if your answers indicate that you cannot rely on UDP or TCP for media, and users need an alternative route.

1.4 Provision Infrastructure

Now you’ll provision the servers or VMs required to support your Calls deployment. You are only preparing infrastructure here; software installation and service configuration happen in later phases. This step matters because you need the IP addresses or DNS names of these servers before you can finish the networking configurations in the next step.

Infrastructure requirements depend on the deployment infrastructure you selected in Step 1.2. If you provision additional hardware, write down the IP addresses or DNS names now because you will use them in Step 1.5:

Integrated

Since the Mattermost server is handling all media processing, you can skip this step and proceed to network configuration in Step 1.5.

RTCD

You will need to provision a new server for RTCD. Use the performance baselines for benchmark examples of hardware sizing. The RTCD service supports horizontal scaling, but we recommend starting with one server and then scaling out if your expected workload requires it.

Recording

You will need to provision a new server for the calls-offloader service. The recommended starting point is 8 vCPU / 16 GB RAM, or you can use these performance benchmarks to estimate recording capacity and transcription load.

TURN Server

If you’ve determined in Step 1.3.2 that your users cannot reliably reach the media server over UDP or TCP 8443, you will need to provision your TURN server now.

Mattermost recommends installing coturn.

Before moving to Step 1.5, confirm the following:

• Every required server or VM has been created.

• Every required server has the IP address or DNS name you plan to use later in configuration.

• You have administrative access to every required server. (validate with ssh <user>@<SERVER_IP>)

1.5 Network Configuration

This section lists the network ports that must be opened for each server involved in your Calls deployment. The server instances must exist before you can configure these rules, which is why provisioning in Step 1.4 comes first.

How you open ports depends on your environment:

• Cloud deployments (AWS, Azure, GCP): Configure inbound and outbound rules in your cloud console security group or network ACL for each instance.

• On-premises or self-managed VMs: Use firewalld (RHEL, Rocky Linux, AlmaLinux) or ufw (Ubuntu/Debian) commands directly on each server.

• Centrally managed firewall: If a network team manages your firewall, share the tables below with them and request the rules before proceeding.

Work through one server at a time so you can verify nothing is missed before moving on. Use only the tables that apply to your chosen deployment architecture (Integrated or RTCD):

Integrated

Mattermost server ports

Port	Protocol	Direction	Source	Destination	Notes
443	TCP	Inbound	Mattermost clients	Mattermost server	HTTPS and WebSocket signaling.
8443	UDP	Inbound	Mattermost clients	Mattermost server	Media traffic (Integrated mode).
8443	TCP	Inbound	Mattermost clients	Mattermost server	Media traffic fallback (Integrated mode).
3478	UDP	Outbound	Mattermost server	stun.global.calls.mattermost.com	(Optional - Step 1.3.1) Public IP discovery using STUN.

Important

If you use NGINX as a reverse proxy in front of Mattermost, note that NGINX cannot forward UDP traffic. Port 8443 must be opened directly on the server running the media service - not on NGINX. Port 443 is the only port NGINX handles for Calls.

Recording server ports

If you deployed a calls-offloader server in Step 1.4, open these ports:

Port	Protocol	Direction	Source	Destination	Notes
4545	TCP	Inbound	Mattermost server	calls-offloader server	Job service API (Internal only)
8443	UDP	Outbound	calls-offloader server	Mattermost server	Recorder and transcriber jobs connect to the media service as call participants.
8443	TCP	Outbound	calls-offloader server	Mattermost server	Media traffic fallback.
443	TCP	Outbound	calls-offloader server	Mattermost server	Recorder and transcriber jobs post results back to Mattermost.

TURN server ports

If you deployed a TURN server in Step 1.4, open these ports. If you are using coturn, these are the common defaults:

Port	Protocol	Direction	Source	Destination	Notes
3478	UDP / TCP	Inbound	Mattermost clients	TURN server	TURN relay.
5349	UDP / TCP	Inbound	Mattermost clients	TURN server	(Optional) If you configure TLS on TURN.
49152-65535	UDP	Inbound	Mattermost clients	TURN server	TURN relay port range required to relay media.

RTCD

Mattermost server ports

Port	Protocol	Direction	Source	Destination	Notes
443	TCP	Inbound	Mattermost clients	Mattermost server	HTTPS and WebSocket signaling.
3478	UDP	Outbound	Mattermost server	stun.global.calls.mattermost.com	(Optional - Step 1.3.1) Public IP discovery using STUN.

RTCD server ports

Port	Protocol	Direction	Source	Destination	Notes
8443	UDP	Inbound	Mattermost clients and calls-offloader server	RTCD server	Media traffic.
8443	TCP	Inbound	Mattermost clients and calls-offloader server	RTCD server	Media traffic fallback.
8045	TCP	Inbound	Mattermost server	RTCD server	RTCD API (Internal only)
3478	UDP	Outbound	RTCD server	stun.global.calls.mattermost.com	(Optional - Step 1.3.1) Public IP discovery using STUN.

Important

If you use NGINX as a reverse proxy in front of Mattermost, note that NGINX cannot forward UDP traffic. Port 8443 must be opened directly on the server running the media service - not on NGINX. Port 443 is the only port NGINX handles for Calls.

Recording server ports

If you deployed a calls-offloader server in Step 1.4, open these ports:

Port	Protocol	Direction	Source	Destination	Notes
4545	TCP	Inbound	Mattermost server	calls-offloader server	Job service API (Internal only)
8443	UDP	Outbound	calls-offloader server	Mattermost server and RTCD server	Recorder and transcriber jobs connect to the media service as call participants.
8443	TCP	Outbound	calls-offloader server	Mattermost server and RTCD server	Media traffic fallback.
443	TCP	Outbound	calls-offloader server	Mattermost server	Recorder and transcriber jobs post results back to Mattermost.

TURN server ports

If you deployed a TURN server in Step 1.4, open these ports. If you are using coturn, these are the common defaults:

Port	Protocol	Direction	Source	Destination	Notes
3478	UDP / TCP	Inbound	Mattermost clients	TURN server	TURN relay.
5349	UDP / TCP	Inbound	Mattermost clients	TURN server	(Optional) If you configure TLS on TURN.
49152-65535	UDP	Inbound	Mattermost clients	TURN server	TURN relay port range required to relay media.

1.6 Networking Checks

These checks test firewall rules and network reachability only. They do not require Calls, RTCD, or calls-offloader to be installed yet.

First, install nmap on each machine you will run checks from. For example:

• Ubuntu or Debian: sudo apt install nmap

• RHEL, Rocky Linux, or AlmaLinux: sudo dnf install nmap

When you execute each check below, nmap returns open, closed, or filtered.

Pass:

• open: Port is reachable and the service is running. Expected if you’ve already installed the RTCD or Recording services in Phases 2-3.

• closed: Port is reachable but the service is not running. Expected if you just provisioned the infrastructure in Step 1.4.

Fail:

• filtered: Firewall is blocking the port. Revisit your networking configuration in Step 1.5 before continuing.

Note

In the commands below, replace TARGET_IP with the actual IP address of the server you are testing. For example, if your Mattermost server IP is 10.0.1.50, run sudo nmap -sU -p 8443 10.0.1.50.

Integrated deployments

Run from a client machine on the same network as your users:

Check	Command	TARGET_IP	Description
1.6.1	sudo nmap -sU -p 8443 TARGET_IP	Mattermost server IP	Clients can send UDP media to the Mattermost server
1.6.2	nmap -p 8443 TARGET_IP	Mattermost server IP	Clients can reach the Mattermost server for TCP media fallback

RTCD deployments

Run from a client machine on the same network as your users:

Check	Command	TARGET_IP	Description
1.6.3	sudo nmap -sU -p 8443 TARGET_IP	RTCD server IP	Clients can send UDP media to the RTCD server
1.6.4	nmap -p 8443 TARGET_IP	RTCD server IP	Clients can reach the RTCD server for TCP media fallback

Run from the Mattermost server:

Check	Command	TARGET_IP	Description
1.6.5	nmap -p 8045 TARGET_IP	RTCD server IP	Mattermost can reach the RTCD API

Recording deployments

Run from the Mattermost server:

Check	Command	TARGET_IP	Description
1.6.6	nmap -p 4545 TARGET_IP	calls-offloader server IP	Mattermost can reach the calls-offloader API

Run from the calls-offloader server:

Check	Command	TARGET_IP	Description
1.6.7	sudo nmap -sU -p 8443 TARGET_IP	RTCD server IP (or Mattermost server IP if using Integrated mode)	Calls Offloader can send UDP media to the media service to join calls for recording
1.6.8	nmap -p 8443 TARGET_IP	RTCD server IP (or Mattermost server IP if using Integrated mode)	Calls Offloader can reach the media service for TCP media fallback
1.6.9	nmap -p 443 TARGET_IP	Mattermost server IP	Calls Offloader can post recordings back to Mattermost

TURN deployments

Run from a client machine on the same network as your users:

Check	Command	TARGET_IP	Description
1.6.10	sudo nmap -sU -p 3478 TARGET_IP	TURN server IP	Clients can reach the TURN server on UDP 3478
1.6.11	nmap -p 3478 TARGET_IP	TURN server IP	Clients can reach the TURN server on TCP 3478
1.6.12	nmap -p 5349 TARGET_IP	TURN server IP	(Optional) Clients can reach the TURN server over TLS
1.6.13	sudo nmap -sU -p 49152 TARGET_IP	TURN server IP	Spot check of the TURN relay port range

1.7 Verification Checks

Before proceeding to Phase 2, confirm all of the following:

• You have chosen your deployment architecture and provisioned the required servers.

• You have confirmed your Mattermost license supports the architecture and features you plan to deploy.

• Every required firewall rule and network path for your chosen architecture has been opened.

• Every relevant network check in Step 1.6 returned the expected result (open or closed, but not filtered).

• If you need STUN, outbound UDP 3478 is allowed to stun.global.calls.mattermost.com.

Important

Do not proceed to Phase 2 until all checks in this section relevant to your deployment architecture are passing. If any check fails, go to Appendix A: Troubleshooting.

---

Phase 2: Install and Configure Calls

Now you will configure Calls following the relevant path for your deployment architecture. Do not complete both paths for the same deployment.

• Path A if you are using the Integrated Calls deployment model.

• Path B if you are using the RTCD Calls deployment model.

Path A: Integrated

Path A: Configure Integrated Calls

2A.1 Prerequisites

• Phase 1 verification checks passed

• Integrated is the base architecture you selected in Step 1.2

• Two test accounts on your Mattermost server

• System Admin permissions on your Mattermost server

2A.2 Configure the Calls plugin

The Calls plugin is prepackaged with Mattermost self-hosted deployments. Go to System Console > Plugins > Calls > Settings and complete the following steps:

2A.2.1: Enable the plugin

Set Enable Plugin to true. This enables editing for the rest of the configuration settings on the page.

2A.2.2: Enable test mode

Set Test mode to on, so Calls stays restricted during initial validation. In this mode, System Admins control where Calls is available and can enable it in specific channels for testing.

2A.2.3: Configure the host media address

Set ICE Host Override to the IP address or DNS name clients will use to reach the media service. ICE (Interactive Connectivity Establishment) is the protocol your users’ devices use to find a path to the media server. The ICE Host Override tells Calls which address to advertise to them. Base this value on the STUN decision tree from Step 1.3.1.

• If your users are in a private network, VPN, or air-gapped environment, set it to the private address of the Mattermost server they can reach.

• If your Mattermost server has a stable public IP, set it to that IP.

• Otherwise, leave it empty for automatic public address discovery using STUN.

2A.2.4: Configure TURN Servers

If TURN is being used, replace or extend the ICE server configurations array with your TURN server details:

[
  {
    "urls": ["turn:turn.example.com:3478"],
    "username": "<USERNAME>",
    "credential": "<PASSWORD>"
  }
]

If your TURN deployment uses short-lived generated credentials, also set TURN Static Auth Secret and TURN Credentials Expiration.

2A.2.5: Save configuration

Click Save on the Calls settings page. It is also recommended that you restart the plugin after changing media server settings:

1. Go to System Console > Plugins > Plugin Management.

2. Disable Calls and wait a few seconds.

3. Enable Calls again.

2A.3 Verification Checks

Now smoke test your Calls deployment with your test accounts:

• Create a test channel such as calls-test.

• Open the Channel menu, then select Enable calls.

• Invite your test users into the channel so you can validate a real call.

Check	Action	Pass criteria
2A.3.1	Start a call from the test channel with a second user	Both users are in the call
2A.3.2	Speak during the call	Both users can hear each other clearly
2A.3.3	Share your screen from a desktop app or supported browser	Screen sharing is visible to the other user
2A.3.4	End the call	The call indicator disappears from the channel

Important

Do not continue until all of the checks pass. If any check fails, go to Appendix A: Troubleshooting.

Path B: Install and Configure RTCD

Path B: Install and Configure RTCD

2B.1 Prerequisites

• Phase 1 verification checks passed

• RTCD is the base architecture you selected in Step 1.2

• RTCD server is provisioned (1.4) and RTCD networking checks passed (1.6.3-1.6.5)

• Mattermost Enterprise or Enterprise Advanced license is active on your server

• Two test accounts on your Mattermost server

• System Admin permissions on your Mattermost server

2B.2 Install RTCD

Follow the RTCD Setup and Configuration guide for the actual installation. The guide covers:

• Binary installation

• rtcd.toml configuration

• Service setup

• TURN configuration (if applicable)

Note

If you are deploying on Kubernetes, also use the Calls Deployment on Kubernetes guide for cluster-specific installation and Helm-based configuration.

Before proceeding, run these checks from the Mattermost server to confirm RTCD is running and reachable:

Check	Command	Pass criteria
2B.2.1	nmap -p 8045 YOUR_RTCD_SERVER	open - RTCD is running and accepting connections.
2B.2.2	curl http://YOUR_RTCD_SERVER:8045/version	Returns a JSON version string

2B.3 Connect Mattermost to RTCD

Once RTCD is installed, configured, and reachable, update the Calls plugin to use it:

1. Go to System Console > Plugins > Calls > Settings.

2. Set Enable Plugin to true. This enables editing for the rest of the Calls settings on the page.

3. Set Test mode to on, so Calls stays restricted during initial validation. In this mode, System Admins control where Calls is available and can enable it in specific channels for testing.

4. Set RTCD Service URL to your RTCD address. If RTCD credentials were generated during setup, embed them directly in the URL:

   http://clientID:authKey@rtcd.internal:8045


   Replace clientID and authKey with the values generated during RTCD setup. The first connection to RTCD self-registers the client and stores the authentication key in the database.

   Alternatively, set credentials via environment variables on the Mattermost server: MM_CALLS_RTCD_CLIENT_ID and MM_CALLS_RTCD_AUTH_KEY.

5. Click Save and restart the Calls plugin so the change takes effect.

2B.4 Configure Calls Monitoring

Before your pilot, set up Calls monitoring so you can see sessions, errors, CPU, and memory while real users are testing.

Calls monitoring uses Prometheus (a tool that collects metrics from your servers) and Grafana (a dashboard that visualizes those metrics). If you don’t have these set up yet, see Mattermost monitoring setup before continuing. If you already have Prometheus and Grafana running, add the following scrape targets and import the dashboard:

• RTCD metrics: http://YOUR_RTCD_SERVER:8045/metrics

• Calls plugin metrics: http://YOUR_MATTERMOST_SERVER:8067/plugins/com.mattermost.calls/metrics

• Grafana dashboard: Import dashboard ID 23225

See Calls Metrics and Monitoring for full configuration details.

2B.5 Verification Checks

Now smoke test your RTCD deployment with your test accounts:

• Create a test channel such as calls-test.

• Open the Channel menu, then select Enable calls.

• Invite your test users into the channel so you can validate a real call.

Check	Action	Pass criteria
2B.5.1	Start a call from the test channel with a second user	Both users are in the call
2B.5.2	Speak during the call	Both users can hear each other clearly
2B.5.3	Share your screen from a desktop app or supported browser	Screen sharing is visible to the other user
2B.5.4	End the call	The call indicator disappears from the channel

If these checks fail, try these troubleshooting techniques first:

• Re-run checks 2B.2.1 and 2B.2.2 to confirm RTCD is listening and responding.

• Confirm RTCD Service URL is correct and includes credentials if your RTCD setup requires them.

• Check that the Mattermost server can reach RTCD on port 8045, and review RTCD logs before changing other settings.

Important

Do not continue until all of the checks pass. If any check fails, go to Appendix A: Troubleshooting.

---

Phase 3: Install and Configure Recording

Now we will install and configure the calls-offloader job service that handles call recording, transcription, and live captions.

You can skip this phase if you do not need recording, transcription, or live captions.

3.1 Prerequisites

• calls-offloader server is provisioned (1.4) and relevant networking checks passed (1.6.6-1.6.9)

• If you are using Integrated mode: Phase 2A verification checks passed (2A.3.1-2A.3.4).

• If you are using RTCD: Phase 2B verification checks passed (2B.5.1-2B.5.4).

• Mattermost Enterprise or Enterprise Advanced license is active on your server

• System Admin permissions on your Mattermost server

3.2 Install calls-offloader

Follow the Calls Offloader Setup and Configuration guide for installation. The guide covers:

• Binary installation

• config.toml configuration

• Systemd service setup

• Docker-backed jobs

• Private network overrides

• Air-gapped installation

Before proceeding, run these checks from the Mattermost server to confirm calls-offloader is running and reachable:

Check	Command	Pass criteria
3.2.1	nmap -p 4545 YOUR_OFFLOADER_SERVER	open - calls-offloader is running and accepting connections.
3.2.2	curl http://YOUR_OFFLOADER_SERVER:4545/version	Returns a JSON version string

3.3 Connect calls-offloader to Mattermost

1. Go to System Console > Plugins > Calls > Settings.

2. Set Job Service URL to the calls-offloader address, for example http://calls-offloader.internal:4545.

3. Enable Call Recordings if needed.

4. Enable Call Transcriptions if needed. Transcriptions require recordings to be enabled.

5. Enable Live Captions if needed. Live captions require both recordings and transcriptions to be enabled.

6. Click Save and restart the Calls plugin so the change takes effect.

3.4 Verification Checks

Now smoke test recording-related features with your test accounts:

Check	Action	Pass criteria
3.4.1	Start recording as a call host	Recording starts without error.
3.4.2	End the call or stop the recording	An MP4 file appears in the call thread after processing completes.
3.4.3	With transcription enabled, end a recorded call	An MP4 file and transcript file appear in the call thread after processing completes.
3.4.4	With live captions enabled, start a recorded call	Captions appear during the call within 1-3 seconds after participants speak.

If a recording-related check fails, isolate the problem before retrying:

• 3.4.1 or 3.4.2 fails: Confirm the Job Service URL is correct, the calls-offloader service is running, and the Mattermost server can reach port 4545.

• 3.4.3 fails: Confirm recordings are enabled first, then confirm transcription is enabled.

• 3.4.4 fails: Confirm both recordings and transcriptions are enabled before testing live captions.

Important

Do not continue until all of the checks pass. If any check fails, go to Appendix A: Troubleshooting.

---

Phase 4: Pilot Rollout

Now that the technical configuration is complete and validated, run a small pilot with real users before broad rollout. The goal is to confirm Calls works reliably across the clients and locations your organization uses, and that your servers stay healthy under normal usage.

4.1 Prerequisites

• If using Integrated mode: Phase 2A verification checks passed (2A.3.1-2A.3.4)

• If using RTCD: Phase 2B verification checks passed (2B.5.1-2B.5.4)

• If using Recording: Phase 3 verification checks passed (3.4.1-3.4.4)

• 5 to 10 volunteer pilot users from different locations

• Access to the metrics dashboard and logs on your Calls infrastructure

• Pilot users have current Mattermost desktop and mobile apps

4.2 Preparation and Communication

For a successful pilot, make sure pilot users know what to test, how to start a call, and how to report problems.

After inviting your pilot users into the calls-test channel, post a short message there so everyone is testing the same things. A template is provided below:

Pilot user communication template

## Mattermost Calls pilot

Thank you for volunteering to test Mattermost Calls before a wider rollout. After 3-5 days of pilot testing, we will ask everyone to share their findings and experiences. Please keep track of any issues or feedback so you can summarize them when requested.

**How to start**

Calls is enabled in this channel for pilot testing. You can select **Start call** in the channel header to begin, or join an existing call if one is already started.

You can learn more about Mattermost Calls in the [documentation](https://docs.mattermost.com/end-user-guide/collaborate/make-calls.html).

**Test Cases**

| Test | Action | Pass criteria | Client Types |
|---|---|---|---|
| T1 | Group call with 3-5 participants | All participants can hear each other clearly | Web, Desktop, Mobile |
| T2 | Group call lasting 15 minutes or longer | No unexpected drops or audio degradation | Web, Desktop, Mobile |
| T3 | Participants join calls from outside the main office network | Call quality is acceptable from that network | Web, Desktop, Mobile |
| T4 | Participants share screen during a call | Screen sharing works and is visible to all participants | Desktop, Web |
| T5 | Record a group call, if recording is enabled | MP4 and transcription file appear in the call thread after processing completes | Web, Desktop, Mobile |
| T6 | Enable Live Captions during a group call, if captions are enabled | Captions appear during the call within 1-3 seconds after participants speak | Web, Desktop |

**Reporting Issues**

If you encounter an issue, please report it by posting in this channel and including:

- Test number
- Reproduction steps
- What you expected to happen
- What actually happened (with screenshots)
- Your client type (desktop, browser, or mobile)

4.3 Verification Checks

Monitoring

Check	Action	Pass criteria
4.3.1	Check your metrics dashboard during a pilot call	Active sessions and participants are visible and counted correctly
4.3.2	If using RTCD, check RTCD error metrics after pilot calls (rtcd_rtc_errors_total)	No elevated error counts
4.3.3	If using RTCD, check CPU and memory metrics during a pilot call (rtcd_process_cpu_seconds_total, rtcd_process_resident_memory_bytes)	No CPU or memory spikes observed
4.3.4	Review Mattermost logs, plus RTCD and calls-offloader logs if those services are deployed	No recurring ERROR lines, and no unexpected WARN patterns

Production readiness

Collect feedback from your pilot users after 3-5 business days and use it to evaluate production readiness:

Check	Requirement
4.3.5	Audio quality rated acceptable by 80%+ of pilot users
4.3.6	No blocking issues found in the pilot test cases
4.3.7	All pilot users confirm readiness for production rollout

If the pilot users find issues, do not expand the rollout yet:

• Fix the issue in the smallest possible scope.

• Repeat the affected pilot test case.

• Stay in pilot until the failing scenario is consistently passing.

You can also run /call stats in the Mattermost message area after a failed test for additional diagnostic clues.

Important

Do not continue to a production rollout until all relevant checks are passing. If any check fails, go to Appendix A: Troubleshooting.

---

Phase 5: Production Rollout

Now you will execute a broader rollout to all users in production.

5.1 Prerequisites

• Phase 4 production readiness checks passed (4.3.1-4.3.7)

• Rollback plan documented and understood

• System Admin permissions on your Mattermost server

• Access to the metrics dashboard and logs on your Calls infrastructure

5.2 Rollback plan

You should be familiar with your rollback options before you begin the staged production rollout. If something goes wrong, choose the smallest rollback that solves the problem:

Per-channel rollback

Disables Calls in specific channels.

1. Navigate to the impacted channel.

2. Select the Channel menu, then select Disable calls.

Test mode rollback

Restricts Calls to channels where it has been enabled by a System Admin.

1. Go to System Console > Plugins > Calls > Settings.

2. Set Test Mode to on.

Full rollback

Disables Calls completely for everyone.

1. Go to System Console > Plugins > Plugin Management.

2. Disable the Calls plugin.

If you have an existing conferencing tool, keep it available until Calls is stable in production.

5.3 Preparation and Communication

Before announcing Calls to users, create a calls-support public channel. This gives users a clear place to report issues and gives your admins a single place to track rollout problems.

Also prepare a short announcement to share in an all-hands channel or similar high-visibility location. A template is provided below:

Production rollout communication template

## Mattermost Calls rollout

We're enabling Mattermost Calls across this server. Starting today, you can start audio calls in select channels directly within Mattermost - no need to switch to a separate tool.

We're rolling out gradually, starting with a select set of channels before expanding to everyone.

**Calls features**

- Start or join 1:1 and group audio calls
- Share your screen from the desktop app or browser
- Record calls and generate transcripts, if enabled
- Use live captions during recorded calls, if enabled

You can learn more about Mattermost Calls in the [documentation](https://docs.mattermost.com/end-user-guide/collaborate/make-calls.html).

**How to start a call**

Select **Start call** in the channel header. Anyone in the channel can join.

**Things to know**

- We recommend updating your [desktop and mobile apps](https://mattermost.com/apps/) to the latest version
- Your browser or desktop app may ask for microphone permission the first time you join a call.
- Screen sharing may also require a screen capture permission prompt.

**Need help?**

Post in `~calls-support` and include what you were trying to do, what happened, and a screenshot if possible.

5.4 Rollout Stages

We recommend enabling Calls in stages instead of enabling it everywhere at once. This way you can watch real usage, catch problems early, and rollback cleanly if needed.

Stage	Channels / departments	Suggested timeline	Rollback approach
Stage 1	IT and Admin channels	Days 1-3	Per-channel rollback
Stage 2	Engineering or power user channels	Days 4-7	Per-channel rollback
Stage 3	Full organization	Day 8+	Test mode (if issues are isolated) or full rollback

If a rollout stage introduces problems, pause the rollout, use the rollback option listed for that stage, fix the issue, and repeat the same stage before moving to the next one.

5.5 Monitor and optimize

Once Calls is live, monitor it actively for the first two weeks and tune based on what you see.

5.5.1: Watch server health during peak call hours

Monitor CPU and memory on the media server (RTCD or Mattermost server) daily during peak usage. If CPU utilization consistently exceeds 70%, consider increasing hardware specs, or adding RTCD nodes before the next rollout stage.

5.5.2: Review logs daily

Check Mattermost, RTCD, and calls-offloader logs each day for recurring ERROR or WARN lines. Address any patterns before they become user-facing problems.

5.5.3: Tune Max Call Participants

If you see resource pressure during large calls, lower Max Call Participants in System Console > Plugins > Calls. By default there is no participant limit (configured as 0, which means unlimited). A practical ceiling for most deployments is 50.

5.5.4: Track user-reported issues

Monitor ~calls-support for recurring complaints.

Check Appendix A: Troubleshooting for common issues and fixes.

---

Appendix A: Troubleshooting

A.1 The call button is missing

Cause	Fix
The Calls plugin is disabled	Go to System Console > Plugins > Plugin Management and enable Calls
The deployment is in test mode	Go to System Console > Plugins > Calls > Settings and check the deployment state - Calls must be enabled in specific channels by System Admins in test mode
Calls is not enabled for the channel	When test mode is enabled, open the channel menu and select Enable calls
The user is on an older client	Ask the user to update to the current Mattermost desktop or mobile app

A.2 Calls start but audio does not work

Cause	Fix
UDP 8443 is blocked	Repeat the UDP connectivity check from Phase 1 (check 1.6.1 or 1.6.3) and confirm the firewall rule is applied
TCP 8443 is also blocked and fallback is failing	Repeat the TCP check (1.6.2 or 1.6.4) - clients need at least one path to the media service
The wrong media address is being advertised	Re-check ICE Host Override in Phase 2A (Integrated) or ice_host_override in rtcd.toml in Phase 2B (RTCD) - the address must be reachable by clients
Browser or desktop microphone permissions were denied	Ask the user to check browser or OS microphone permissions and reload the app

A.3 Remote users cannot join from outside the network

Cause	Fix
External firewall rules are blocking UDP 8443	Confirm external reachability to UDP 8443 on the media server - cloud security groups and on-prem firewalls both need to allow inbound traffic from the internet
The advertised media address is a private IP	Set ICE Host Override (Integrated) or ice_host_override in rtcd.toml to the correct public IP or use STUN (1.3.1)
Client networks are too restrictive for direct UDP or TCP	Deploy a TURN server and add it to ICE server configurations

A.4 Recording, transcription, or captions are failing

Cause	Fix
calls-offloader is not running	Run nmap -p 4545 YOUR_OFFLOADER_SERVER from the Mattermost server - if the result is closed, the service is not running; check the systemd service logs
Mattermost cannot reach the Job Service URL	Run curl http://YOUR_OFFLOADER_SERVER:4545/version from the Mattermost server and confirm it returns a version string
The offloader service account cannot use Docker	Confirm the service account is in the docker group on the calls-offloader server
