Calls Deployment Overview#

plans-img Available on all plans

deployment-img Cloud and self-hosted deployments

This document provides an overview of Mattermost Calls deployment options for self-hosted environments, including air-gapped environments, ensuring private communication without reliance on public internet connectivity with flexible configuration options for complex network requirements.

About Mattermost Calls#

Mattermost Calls provides integrated audio calling and screen sharing capabilities within Mattermost channels. It’s built on WebRTC technology and can be deployed either:

  1. Integrated mode: Built into the Calls plugin (simpler, suitable for smaller deployments)

  2. RTCD mode: Using a dedicated service for improved performance and scalability (recommended for production environments)

Terminology#

  • WebRTC: The set of protocols on which calls are built

  • RTC: Real-Time Connection channel used for media (audio/video/screen)

  • WS: WebSocket connection used for signaling and connection setup

  • SFU: Selective Forwarding Unit, routes media between participants

  • NAT: Network Address Translation for mapping IP addresses

  • STUN: Protocol used by WebRTC clients to help traverse NATs

  • TURN: Protocol to relay media for clients behind strict firewalls

Key Components#

  • Calls plugin: The main plugin that enables calls functionality. Installed by default in Mattermost self-hosted deployments.

  • RTCD service: Optional dedicated service for offloading media processing (Enterprise feature). Typically deployed to dedicated servers or containers. See RTCD Setup and Configuration for details.

  • calls-offloader: Service for call recording and transcription (if enabled). Typically deployed to dedicated servers. See Calls Offloader Setup and Configuration for setup and troubleshooting details.

Network Requirements#

  • Run Mattermost server on a secure (HTTPs) connection. This is a necessary requirement on the client to allow capturing devices (e.g., microphone, screen). See the config TLS section for more info.

  • See network requirements below.

Client#

  • Clients need to be able to connect (send and receive data) to the instance hosting the calls through the UDP port configured as RTC Server Port. If this is not possible a TURN server should be used to achieve connectivity.

  • Depending on the platform or operating system, clients may need to grant additional permissions to the application (e.g., browser, desktop app) to allow them to capture audio inputs or share the screen.

Network#

Service Ports Protocols Source Target Purpose
API (Calls plugin) 80,443 TCP (incoming) Mattermost clients (web/desktop/mobile) Mattermost instance (Calls plugin) To allow for HTTP and WebSocket connectivity from clients to Calls plugin. This API is exposed on the same connection as Mattermost, so there's likely no need to change anything.
RTC (Calls plugin or rtcd) 8443 UDP (incoming) Mattermost clients (Web/Desktop/Mobile) and ``calls-offloader`` spawned jobs (Recorder, Transcriber) Mattermost instance or rtcd service To allow clients to establish connections that transport calls related media (e.g. audio, video). This should be open on any network component (e.g. NAT, firewalls) in between the instance running the plugin (or rtcd) and the clients joining calls so that UDP traffic is correctly routed both ways (from/to clients).
RTC (Calls plugin or rtcd) 8443 TCP (incoming) Mattermost clients (Web/Desktop/Mobile) and ``calls-offloader`` spawned jobs (Recorder, Transcriber) Mattermost instance or rtcd service To allow clients to establish connections that transport calls related media (e.g. audio, video). This should be open on any network component (e.g. NAT, firewalls) in between the instance running the plugin (or rtcd) and the clients joining calls so that TCP traffic is correctly routed both ways (from/to clients). This can be used as a backup channel in case clients are unable to connect using UDP. It requires rtcd version >= v0.11 and Calls version >= v0.17.
API (rtcd) 8045 TCP (incoming) Mattermost instance(s) (Calls plugin) rtcd service To allow for HTTP/WebSocket connectivity from Calls plugin to rtcd service. Can be expose internally as the service only needs to be reachable by the instance(s) running the Mattermost server.
STUN (Calls plugin or rtcd) 3478 UDP (outgoing) Mattermost Instance(s) (Calls plugin) or rtcd service Configured STUN servers (Optional) To allow for either Calls plugin or rtcd service to discover their instance public IP. Only needed if configuring STUN/TURN servers. This requirement does not apply when manually setting an IP or hostname through the ICE Host Override config option.

For complete network requirements, see the RTCD Setup and Configuration guide.

Limitations#

  • All Mattermost customers can start, join, and participate in 1:1 audio calls with optional screen sharing.

  • For group calls up to 50 concurrent users, Mattermost Enterprise, Professional, or Mattermost Cloud is required.

  • Enterprise customers can also record calls, enable live text captions during calls, and transcribe recorded calls. We recommend that Enterprise self-hosted customers looking for group calls beyond 50 concurrent users consider using the dedicated RTCD service.

  • For Mattermost self-hosted deployments, System admins need to enable and configure the plugin using the System Console. The default maximum number of participants is unlimited; however, we recommend a maximum of 50 participants per call. Maximum call participants is configurable by going to System Console > Plugin Management > Calls > Max call participants. Call participant limits greatly depends on instance resources. For more details, refer to the Performance Considerations section below.

Configuration#

For Mattermost self-hosted customers, the calls plugin is pre-packaged, installed, and enabled. Configuration to allow end-users to use it can be found in System Console > Plugins > Calls.

Deployment Architecture Options#

Mattermost Calls can be deployed in several configurations:

Single Instance Deployments#

Integrated Mode#

The WebRTC service runs within the Calls plugin on the Mattermost server. This is the default mode when first installing the plugin on a single Mattermost instance setup. The WebRTC service is integrated in the plugin itself and runs alongside the Mattermost server.

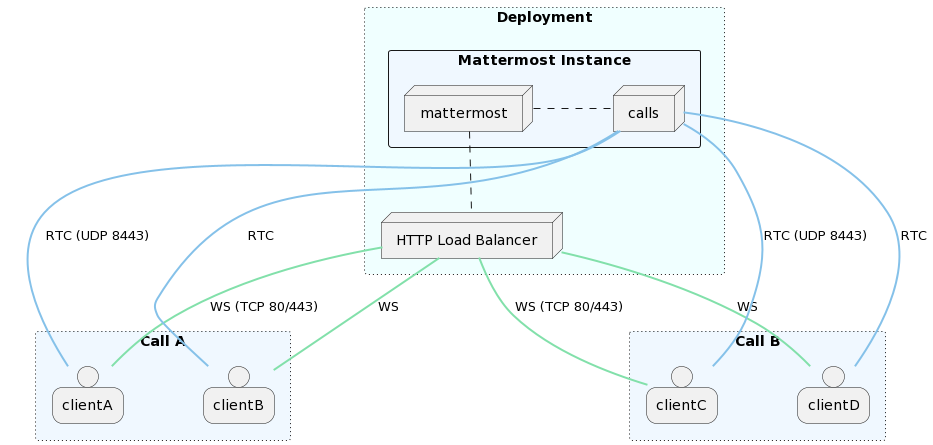

Integrated configuration model of a single instance

RTCD Mode#

A dedicated RTCD service handles media routing, reducing load on the Mattermost server.

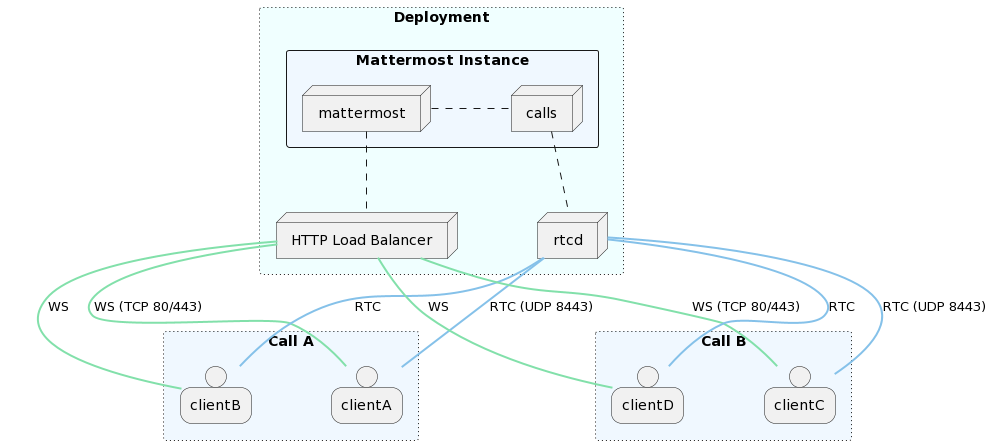

Web RTC deployment configuration

High Availability Deployments#

Clustered Mode#

This is the default mode when running the plugin in a high availability cluster-based deployment. Every Mattermost node will run an instance of the plugin that includes a WebRTC service. Calls are distributed across all available nodes through the existing load-balancer: a call is hosted on the instance where the initiating websocket connection (first client to join) is made. A single call will be hosted on a single cluster node.

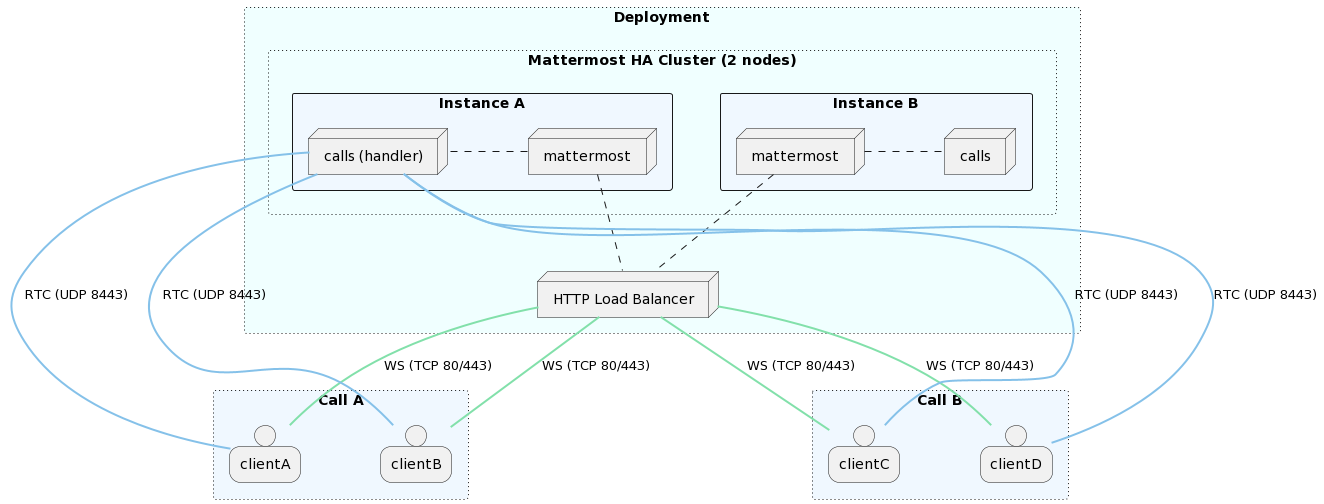

Clustered calls deployment

RTCD with High Availability#

Dedicated RTCD services handle media routing for high availability.

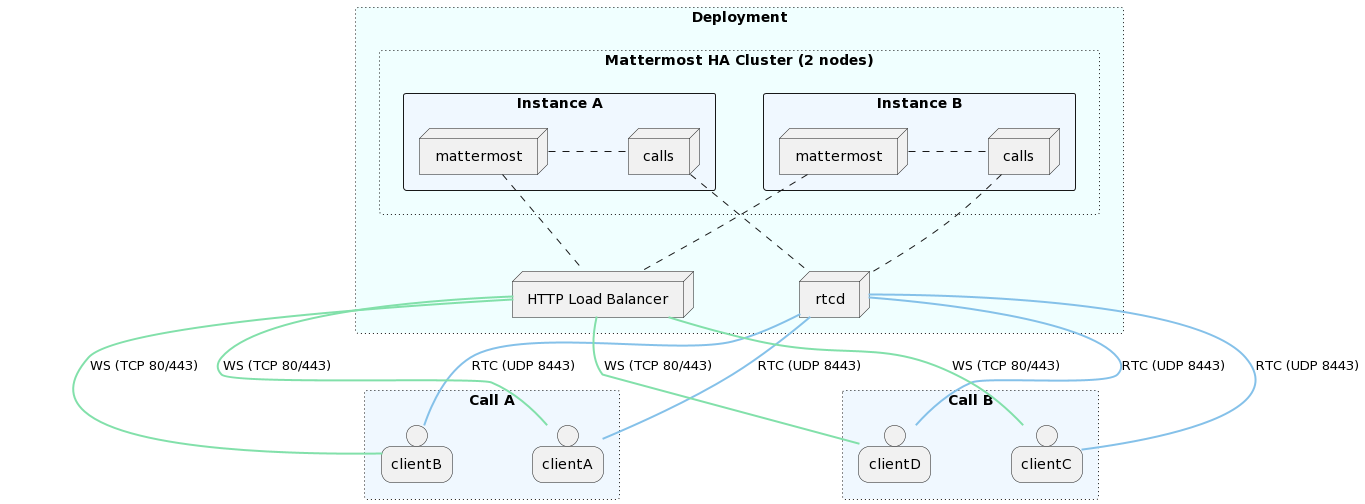

RTCD deployment with high availability

Kubernetes Deployments#

RTCD is the only officially supported approach for Kubernetes deployments. For detailed information on deploying Mattermost Calls in Kubernetes environments, including Helm chart configurations, resource requirements, and scaling considerations, see the Calls Deployment on Kubernetes guide.

When to Use RTCD#

This section will help you understand when and why your organization would want to use the dedicated RTCD service.

Note

RTCD is a standalone service, which adds operational complexity, maintenance costs, and requires an Enterprise license. For those who are evaluating Calls, and for many small instances of Mattermost, the integrated SFU (the one included in the Calls plugin) may be sufficient initially.

The RTCD service is the recommended way to host Calls for the following reasons:

  • Performance of the main Mattermost server(s): When the Calls plugin runs the SFU, calls traffic is added to the processing load of the server running the rest of your Mattermost services. If Calls traffic spikes, it can negatively affect the responsiveness of these services. Using an RTCD service isolates the calls traffic processing to those RTCD instances, and also reduces costs by minimizing CPU usage spikes.

  • Performance, scalability, and stability of the Calls product: If Calls traffic spikes, or more overall capacity is needed, RTCD servers can be added to balance the load. As an added benefit, if the Mattermost traffic spikes, or if a Mattermost instance needs to be restarted, those people in a current call will not be affected - current calls won’t be dropped.

    Some caveats apply here. WebSocket events (for example: emoji reactions, hand raising, muting/unmuting) will not be transmitted while the main Mattermost server is down. But the call itself will continue while the main server restarts.

  • Kubernetes deployments: In a Kubernetes deployment, RTCD is strongly recommended; it is currently the only officially supported way to run Calls.

  • Technical benefits: The dedicated RTCD service has been optimized and tuned at the system/network level for real-time audio/video traffic, where latency is generally more important than throughput.

In general, RTCD is the preferred solution for a performant and scalable deployment. With RTCD, the Mattermost server will be minimally impacted when hosting a high number of calls.

For detailed RTCD setup instructions, see the RTCD Setup and Configuration guide.

Call Recording and Transcription#

For call recording and transcription, you need to:

  1. Deploy the calls-offloader service

  2. Configure the service URL in the System Console

  3. Enable call recordings and/or transcriptions in the plugin settings

For detailed setup instructions, see the Calls Offloader Setup and Configuration guide.

Air-Gapped Deployments#

Mattermost Calls can function in air-gapped environments. Exposing Calls to the public internet is only necessary when users need to connect from outside the local network, and no existing method supports that connection. In such setups:

  • Users should connect from within the private/local network. This can be done on-premises, through a VPN, or via virtual machines.

  • Configuring a STUN server is unnecessary, as all connections occur within the local network.

  • The ICE Host Override configuration setting can be optionally set with a local IP address (e.g., 192.168.1.45), depending on the specific network configuration and topology.

  • For call recording and transcription in air-gapped environments, see the Air-Gapped Deployments section in the Calls Offloader Setup documentation.

Performance Considerations#

Calls performance primarily depends on:

  • CPU resources: More participants require more processing power

  • Network bandwidth: Both incoming and outgoing traffic increases with participant count. Due to the nature of the service, the bottleneck is always going to be the outgoing/egress path

  • Active speakers: Unmuted participants require significantly more resources

  • Presenters: Screen sharing participants require even more resources than active speakers

For detailed performance metrics, benchmarks, and monitoring guidance, see the Calls Metrics and Monitoring guide.

Frequently Asked Questions#

Is calls traffic encrypted?
Media (audio/video) is encrypted using security standards as part of WebRTC. It’s mainly a combination of DTLS and SRTP. It’s not e2e encrypted in the sense that in the current design all media needs to go through Mattermost which acts as a media router and has complete access to it. Media is then encrypted back to the clients so it’s secured during transit. In short: only the participant clients and the Mattermost server have access to unencrypted call data.

Are there any third-party services involved?
Only a Mattermost STUN server (stun.global.calls.mattermost.com) is used by default. This can be removed if you set the ICE Host Override configuration.

Is using UDP a requirement?
UDP is recommended protocol to serve real-time media as it allows for the lowest latency between peers, but TCP fallback is supported since plugin version 0.17 and RTCD version 0.11.

If clients are unable to connect using UDP (due to limitations or strict firewalls), you have a few options:

  • Since plugin version 0.17 and rtcd version 0.11 the RTC service will listen for TCP connections in addition to UDP ones. If configured correctly (e.g. using commonly allowed ports such as 80 or 443) it’s possible to have clients connect directly through TCP when unable to do it through the preferred UDP channel.

  • Run calls through an external TURN server that listens on TCP and relays all media traffic between peers. However, this is a sub-optimal solution that should be avoided if possible as it will introduce extra latency along with added infrastructural cost.

Do I need a TURN server?
Only if clients are behind restrictive firewalls that block UDP. We recommend (and officially support) coturn if needed.

Can RTCD traffic be kept internal?
Yes, and it’s recommended. Only the media ports need to be accessible to end-users.

How will this work with an existing reverse proxy sitting in front of Mattermost?

Generally clients should connect directly to either Mattermost or, if deployed, the dedicated rtcd service through the configured UDP port. However, it’s also possible to route the traffic through an existing load balancer as long as this has support for routing the UDP protocol (e.g. nginx). Of course this will require additional configuration and potential changes to how the plugin is run as it won’t be possible to load balance the UDP flow across multiple instances like it happens for HTTP.

Do calls require a dedicated server to work or can they run alongside Mattermost?

The plugin can function in different modes. By default calls are handled completely by the plugin which runs as part of Mattermost. It’s also possible to use a dedicated service to offload the computational and bandwidth costs and scale further (Enterprise only).

See RTCD Setup and Configuration for more details on the dedicated RTCD service.

Can the traffic between Mattermost and rtcd be kept internal or should it be opened to the public?

When possible, it’s recommended to keep communication between the Mattermost cluster and the dedicated rtcd service under the same private network as this can greatly simplify deployment and security. There’s no requirement to expose rtcd’s HTTP API to the public internet.

Can Calls be rolled out on a per-channel basis?

Note

deployment-img-yellow Available only for self-hosted deployments

Yes. Mattermost system admins running self-hosted deployments can enable or disable call functionality per channel. Once test mode is enabled for Mattermost Calls:

  1. Navigate to the channel where you want to enable or disable Calls

  2. Access the channel menu by clicking the channel name at the top of the channel

  3. Select the Calls option from the dropdown menu:

    • Select Enable calls for each channel where you want Calls enabled

    • Select Disable calls for all channels where you want Calls disabled

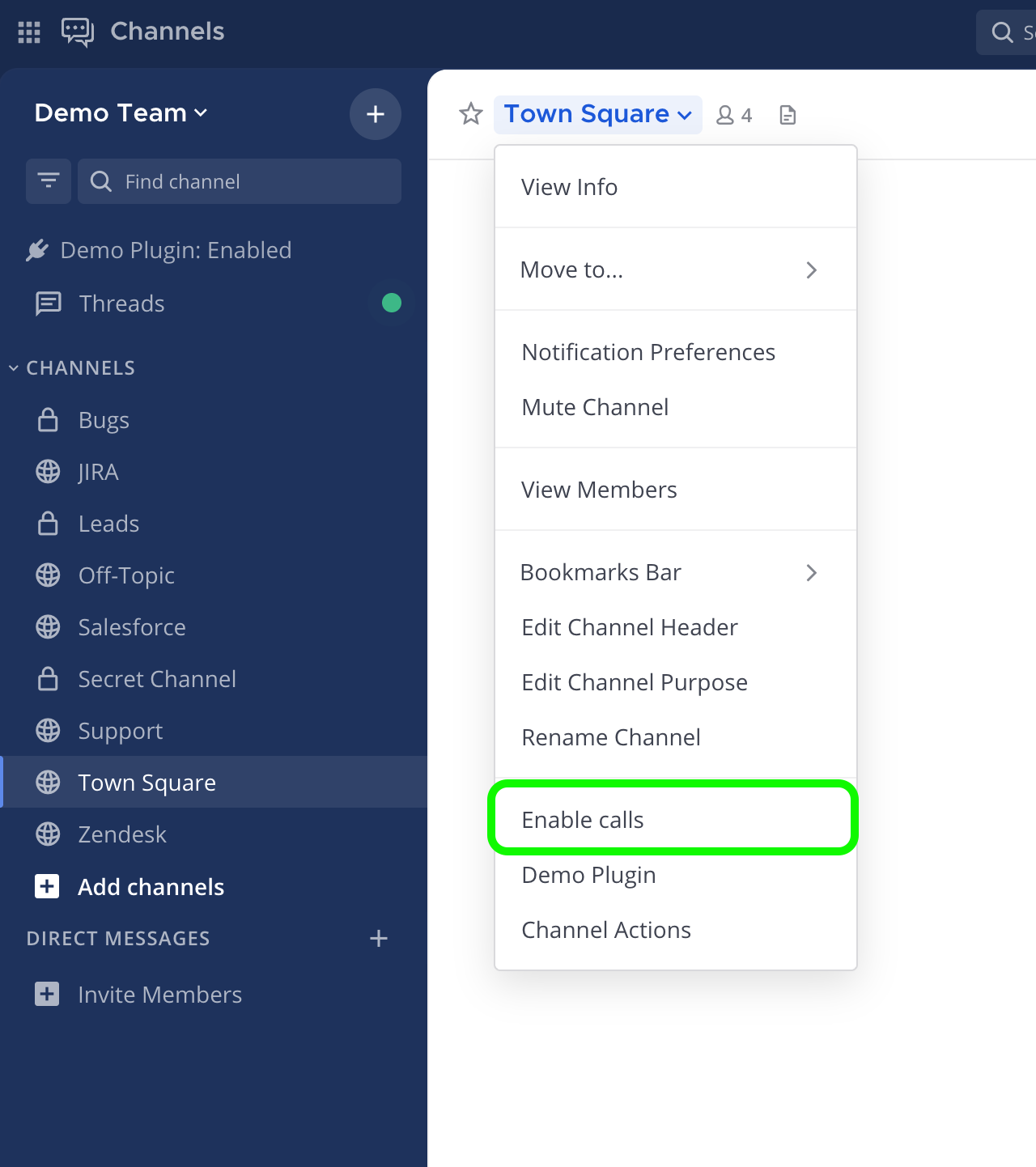

Channel menu showing Enable/Disable calls options

Once Calls is enabled for specific channels, users can start making calls in those channels.

Note

When test mode is disabled for Mattermost Calls, users in any Mattermost channel can make a call.

Troubleshooting#

For comprehensive troubleshooting steps and debugging techniques, please refer to the Calls Troubleshooting guide.

Next Steps#

  1. For detailed setup instructions, see RTCD Setup and Configuration

  2. For monitoring guidance, see Calls Metrics and Monitoring

  3. If you encounter issues, see Calls Troubleshooting

  4. For Kubernetes deployments, see Calls Deployment on Kubernetes
